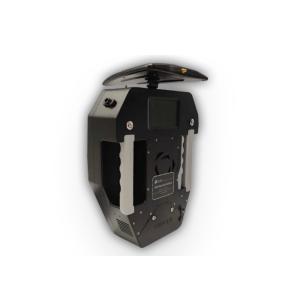

Modular Portable Signal Jammers Signal Jamming Equipment 1.6G Bands With Backpack Style

Ask Latest Price

Video Channel

Model Number :JDY-300T

Certification :Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Place of Origin :China

MOQ :1

Price :＄16750

Payment Terms :T/T,L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability :200 per month

Delivery Time :30 days

Packaging Details :Flight Case

Product Name :Portable Uav Detection and Jamming Shield Shie

Core Technology :Ultra-High-Speed Frequency Sweeping

Detection Frequency Range :300MHz~6000MHz

Key Detection Bands :2.4G/5.8g/900MHz/1.1g/1.4GHz/5.2g (Customizable)

Detection Distance :1~3km (Depends on Local Electromagnetic Environmen

Detection Angle :360° Horizontal, -90°~+90° Pitch

Positioning Accuracy :≤5m (Protocol Analysis)

Jamming Bands :800MHz/900MHz/1.4GHz/1.6GHz/2.4GHz/5.8GHz

Jamming Distance :1~2km (Urban Environment)

Jamming Angle :90° Horizontal, 20°~40° Vertical

Jamming Response Time :≤2.5s; ≤2s (Partial Versions)

Jamming Modes :Repel, Forced Landing, Navigation Interference

Power Supply :Built-in Lithium Battery (24V/29.2V/29.4V)

Weight :≤4kg (Partial); ≤5kg; ≤6kg

Operating Temperature :-20ºC~50ºC

Contact Now

Add to Cart

View Product Description

Portable Drone Detection and Jamming Device

Lightweight Design: Featuring a modular and portable design, it can be operated by one person, making it suitable for rapid deployment.

Ready-to-use: It is instantly operational with a response time of less than 1 second, improving defense efficiency.

All-in-one: It integrates drone detection, location, and jamming capabilities, reducing the complexity of multiple device deployments.

Long-lasting battery life: The built-in high-capacity battery supports extended operation and can be quickly replaced.

Applicable Scenarios: It is highly effective in temporary security checkpoints, mobile patrols, field training, and other situations.

Key Features

Backpackable portable design for easy transportation
Integrated detection and interference capabilities
Wide application across multiple scenarios
Long-range detection and countermeasure capabilities

Technical Specifications

Detection Frequency Band:	300MHz - 6000MHz
Interference Frequency Band:	2.4G / 5.8G / 900MHz / 1.6G / 1.4G
Detection Distance:	≥3000m (open space, no electromagnetic interference)
Interference Distance:	≥2000m (open space, no electromagnetic interference)
